Network Allocation - Routing

Routing allows an IP subnetwork to be assigned to a device.

Note

A VLAN defined within Instant Port Profiles as Non-Forwarding cannot be used to create a routing interface.

To configure routing:

Go to Configure > Network Policies.
Create or select a Network Policy.
Select Switching > Routing > Network Allocation and scroll to the Routing table.
Select to add or to edit.

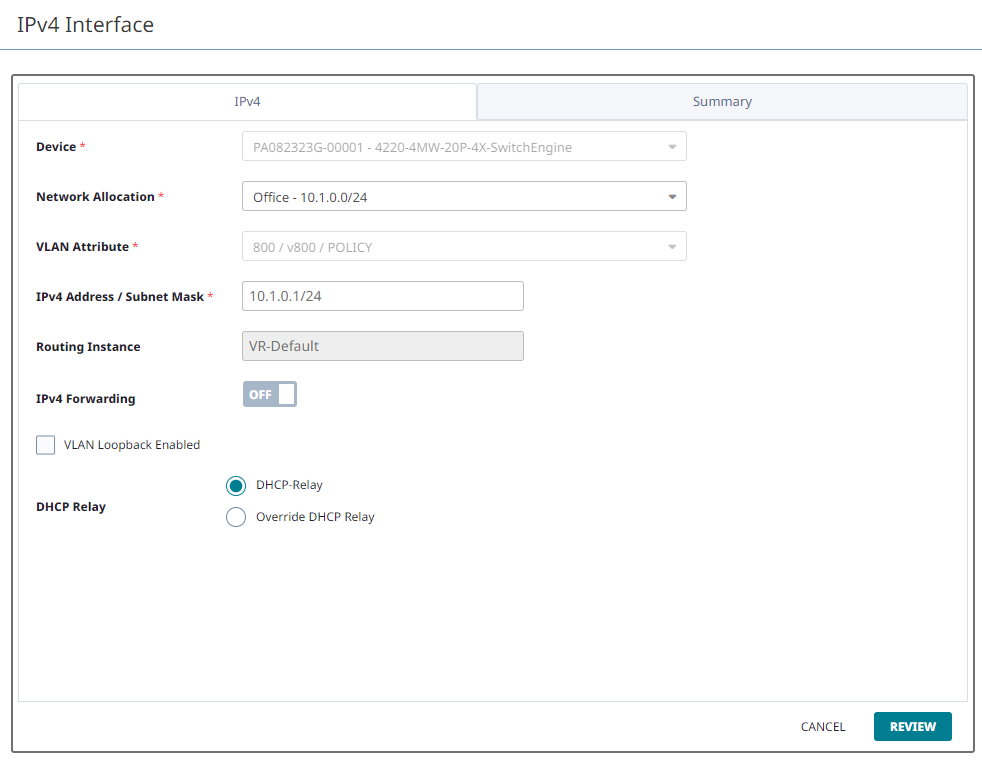

Enter the Routing Attributes according to the table below:

Table 1. Routing Attributes
Field	Description
Device	Select a Device from the drop-down menu.
Network Allocation	Select a Network Allocation from the drop-down menu.
VLAN Attribute	Select a VLAN Attribute from the drop-down menu.
IPv4 Address / Subnet Mask	Shows the assigned IP Address, such as `10.1.0.0/16`.
Routing Instance	Shows the Routing Instance.
VLAN Loopback	Enable or Disable VLAN Loopback.
DHCP Relay	Leave selection of DHCP-Relay or choose to override the DHCP relay.

The Summary tab shows a summary of the routing details.

Note

IPv4 Interface Routing configuration can also be performed at the device-level, within the Manage > Devices > Select Supported Device > Configure > Network Allocation > Interface Configuration page. If an IPv4 Interface is created from device level configuration, then a Network Allocation created from a Network Policy is not applicable. IPv4 Interfaces for devices are still viewable within the Switching > Routing > Network Allocation section.
